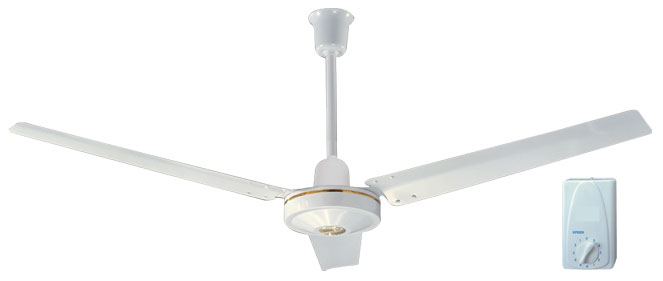

Product Information |
| Product Name: |
56" Ceiling Fan |
| Model No. : |
Deluxe-1 |
| |
|
Specification: |
| Voltage/Frequency |
110v/60Hz/220V/50Hz |
| Power |
75 W |
| Sweep |
1400 mm |
| Motor Diameter: |
φ209 mm |
| Down Rod（mm）: |
φ22×300 mm |
| Rotor（mm）: |
φ152×18.0 mm |
| Stator（mm）: |
φ127.7×18.0 mm |
| Blades Thickness: |
δ0.80 mm |
| Blades Width: |
134×98 mm |
| Blade Length: |
620 mm |
| Blade Angle: |
8°(straight) ° |
| Motor Speed: |
≥310 r/min |
| Max. Temperature Arise: |
≤85 K |
| Foam Size: |
228×228×180 mm |
| Air Flow |
≥240m3/min |
| |
|
Product Features & Functions |
Remark |
| 1. Perfect design with nice appearance |
1. Regulator Optional |
| 2. Powerful motor with double ball bearings, producing strong airflow |
2. with aluminum wire wraping |
| 3. Keeping normal temperature during operation |
|
| 4. 5-speed wall-mounted regulator with patent |
|
| 5. More colors optional |
|
| |
|
Packing Information |
INNER BOX |
| Motor Box Size: |
236×236×190 |
mm |
| Pcs / Box: |
1 |
motor |
| Blade Box Size: |
710×68×145 |
mm |
| Pcs / Box: |
3 |
blades |
| |
|
|
CARTON |
| Measurement: |
720×320×210 |
LxWxH(mm) |
| Carton Net Weight: |
16.2 |
kg |
| Carton Gross Weight: |
18 |
kg |
| Pcs / Ctn: |
3 |
|
ACTUAL PRODUCT |
| Motor Weight: |
3.4 |
kg |
| Blade Weight: |
1.5 |
kg |
| |
CONTAINER LOAD |
| 1 x 20' |
1848 |
Pcs |
| 1 x 40' |
3795 |
Pcs |
| 1 x 40'hq |
4140 |
Pcs |
|
 |
Product Information |
| Product Name: |
48" Ceiling Fan |
| Model No. : |
DS48-10B |
| |
|
Specification: |
| Voltage/Frequency |
110V/50Hz |
| Power |
55 W |
| Sweep |
1200 mm |
| Motor Diameter: |
φ196 mm |
| Down Rod（mm）: |
φ22×200 mm |
| Rotor（mm）: |
φ152×11.7mm |
| Stator（mm）: |
φ127.5×11.7mm |
| Blades Thickness: |
δ0.75mm |
| Blades Width: |
120×95mm |
| Blade Length: |
520mm |
| Blade Angle: |
6°(straight)° |
| Motor Speed: |
≥290 |
| Max. Temperature Arise: |
≤90 |
| Foam Size: |
202×202×164 |
| |
|
Product Features & Functions |
Remark |
| 1. Perfect design with nice appearance |
1.Three/five switch capacitor Regulator Optional |
 |
| 2. Powerful motor with double ball bearings, producing strong airflow |
2. With Aluminium wire winding. |
| 3. Keeping normal temperature during operation |
|
| 4. 5-speed wall-mounted regulator with patent |
|
| 5. More colors optional |
|
| |
|
Packing Information |
INNER BOX |
| Motor Box Size: |
205×205×176 |
mm |
| Pcs / Box: |
1 |
motor |
| Blade Box Size: |
620×40×145 |
mm |
| Pcs / Box: |
9 |
blades |
| |
|
|
CARTON |
| Measurement: |
665×250×195 |
LxWxH(mm) |
| Carton Net Weight: |
10.2 |
kg |
| Carton Gross Weight: |
11.4 |
kg |
| Pcs / Ctn: |
3 |
|
ACTUAL PRODUCT |
| Motor Weight: |
2.1 |
kg |
| Blade Weight: |
1.05 |
kg |
| |
CONTAINER LOAD |
| 1 x 20' |
2916 |
Pcs |
| 1 x 40' |
5940 |
Pcs |
| 1 x 40'hq |
6930(6855) |
Pcs |
|
